First, detailed materials of the product [ exceeds the short ball valve pneumatically ]:
Type of the products: SMQ671F

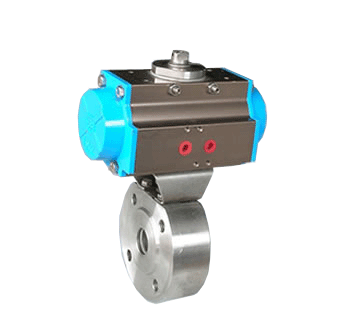

Name of product: Exceed the short ball valve pneumatically
Characteristic of the products: Pneumatic ultra short ball valve, pneumatic ball valve, exceed the short ball valve

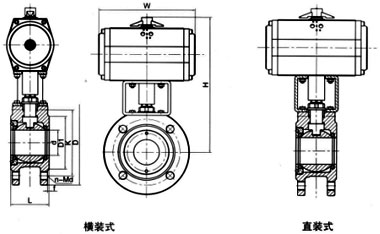

Second , the main appearance of the pneumatic ultra short ball valve and size of connecting:
|
SMQ671F-16 |
|
Open DN directly |
d |
L |
D |
K |
D1 |
n-Md |
f |
H |
W |
|
mm |
in |
|
10 |
3/8" |
10 |
32 |
85 |
60 |
38 |
4-M12 |
2 |
165 |
104 |
|
15 |
1/2" |
14 |
35 |
90 |
65 |
46 |
4-M12 |
2 |
180 |
140 |
|
20 |
3/4" |
19 |
38 |
100 |
75 |
56 |
4-M12 |
2 |
185 |
140 |
|
25 |
1" |
24 |
42 |
110 |
85 |
65 |
4-M12 |
2 |
190 |
140 |
|
32 |
1 1/4" |
29 |
50 |
130 |
100 |
76 |
4-M16 |
3 |
205 |
164 |
|
40 |
1 1/2" |
38 |
60 |
145 |
110 |
84 |
4-M16 |
3 |
220 |
164 |
|
50 |
2" |
48 |
70 |
160 |
125 |
99 |
4-M16 |
3 |
255 |
190 |
|
65 |
2 1/2" |
64 |
95 |
180 |
145 |
118 |
4-M16 |
3 |
280 |
210 |
|
80 |
3" |
76 |
118 |
195 |
160 |
132 |
8-M16 |
3 |
330 |
247 |
|
100 |
4" |
95 |
140 |
215 |
180 |
156 |
8-M16 |
3 |
370 |
276 |
|
125 |
5" |
118 |
195 |
245 |
210 |
184 |
8-M16 |
3 |
460 |
348 |
|
150 |
6" |
150 |
260 |
280 |
240 |
211 |
8-M20 |
3 |
540 |
378 |
|
200 |
8" |
200 |
350 |
335 |
295 |
266 |
12-M20 |
3 |
670 |
432 |
Third , the main appearance of the pneumatic ultra short ball valve and size of connecting:
|
SMQ671F-16P |
|
Open DN directly |
d |
L |
D |
K |
D1 |
n-Md |
f |
H |
W |
|
mm |
in |
|
10 |
3/8" |
10 |
32 |
85 |
60 |
38 |
4-M12 |
2 |
165 |
104 |
|
15 |
1/2" |
14 |
35 |
90 |
65 |
46 |
4-M12 |
2 |
180 |
140 |
|
20 |
3/4" |
19 |
38 |
100 |
75 |
56 |
4-M12 |
2 |
185 |
140 |
|
25 |
1" |
24 |
42 |
110 |
85 |
65 |
4-M12 |
2 |
190 |
140 |
|
32 |
1 1/4" |
29 |
50 |
130 |
100 |
76 |
4-M16 |
3 |
205 |
164 |
|
40 |
1 1/2" |
38 |
60 |
145 |
110 |
84 |
4-M16 |
3 |
220 |
164 |
|
50 |
2" |
48 |
70 |
160 |
125 |
99 |
4-M16 |
3 |
255 |
190 |
|
65 |
2 1/2" |
64 |
95 |
180 |
145 |
118 |
8-M16 |
3 |
280 |
210 |
|
80 |
3" |
76 |
118 |
195 |
160 |
132 |
8-M16 |
3 |
330 |
247 |
|
100 |
4" |
95 |
140 |
215 |
180 |
156 |
8-M20 |
3 |
370 |
276 |
|
125 |
5" |
118 |
195 |
245 |
210 |
184 |
8-M24 |
3 |
460 |
348 |
|
150 |
6" |
150 |
260 |
280 |
240 |
211 |
8-M24 |
3 |
540 |
378 |
|
200 |
8" |
200 |
350 |
335 |
295 |
274 |
8-M24 |
3 |
670 |
432 |
The length of structure: Q/OLF002-88
Flange standard: JB can also press GB9113 , ANSI B16.5 \JIS B2212 |
